    DescriptionParameterDimensions

    Product application:

    ● Power control box of outdoor drilling equipment

    ● Electric control system for spray disinfection vehicle

    ● Power control box of seabed exploration equipment

    ● Special construction machinery vehicle control cabinet

    ● Power control box of construction machinery equipment

    ● Power control terminal of municipal engineering equipment

    ● Power box of manufacturing and processing machinery equipment

    ● Electrical control cabinet of heavy industry mechanical equipment

    ● Electrical control cabinet of machine tool electromechanical equipment


    Product features:

    ★ M4-M5 screws are firmly installed

    ★ Customized remote signaling port type

    ★ Remote dispatching operation and maintenance

    ★ The whole machine works without static leakage current

    ★ Gap discharge and over temperature and over current technology

    ★ Comply with RoHS and REACH international standards and specifications

    ★ The design is based on global market access safety norms and standards

    ★ Passed by TUV/CE(IEC61643) standard product specification certification

    General technical parameters of products:

    ◆Protection Class:IP67

    ◆Respone Time:<25nS

    ◆Leakage Current:<35uA

    ◆Operating Temperature:-40-+85℃

    ◆Storage Temperature:-40-+125℃


    Product Parameters

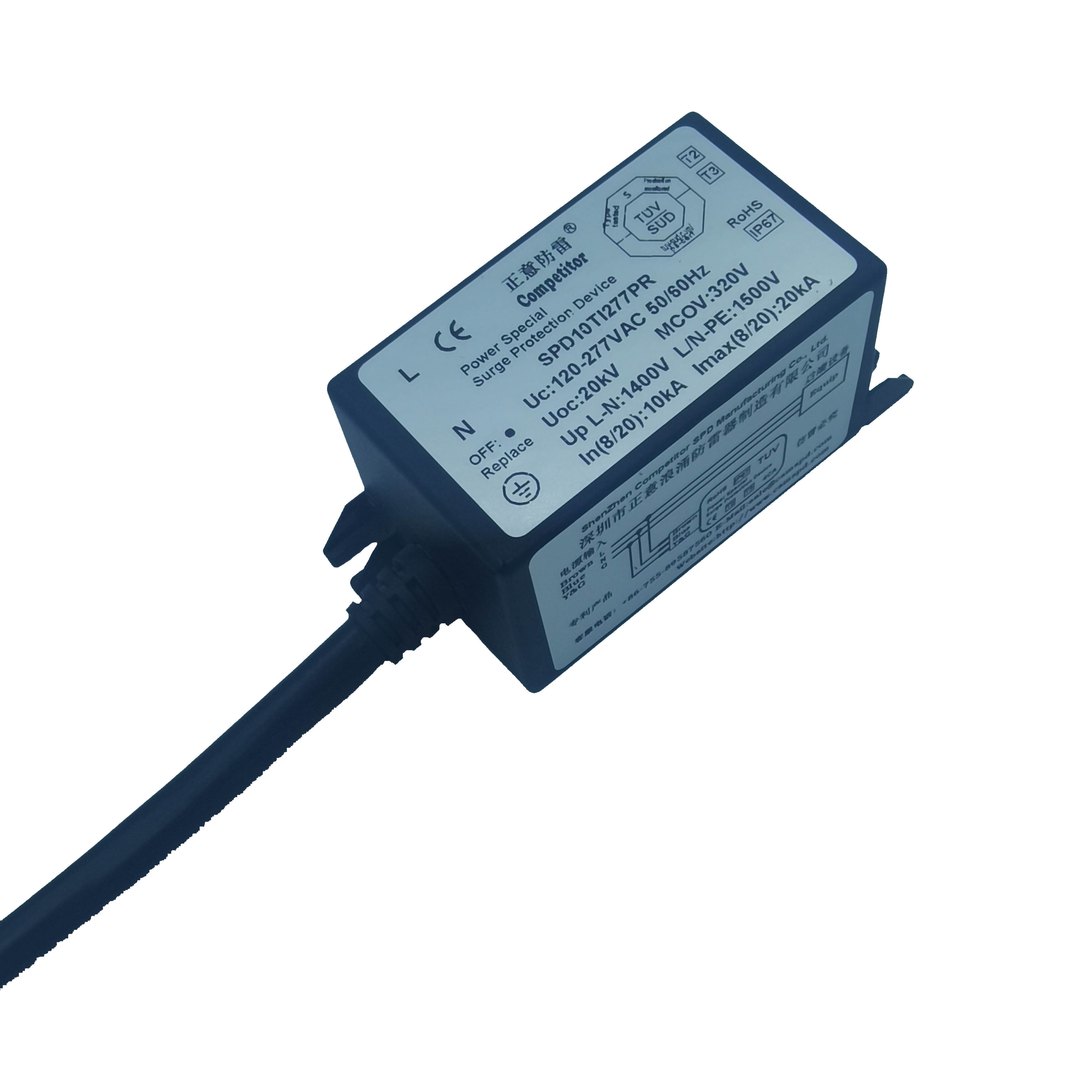

    Parameters/ModelSPD05T277PRSPD05TI277PRSPD10T277PRSPD10TI277PR
    Uc                                                                        277VAC 50/60Hz
    MCOV                                                                        320VAC
    In(8/20)
                                       In(8/20):5kA
                                        In(8/20):10kA
    Imax(8/20)                                   Imax(8/20):10kA

    Up
                            L-N<1250V L/N-PE<1500V                        L-N<1400V L/N-PE<1500V
    Protection Voltage Uoc                                   Uoc:10kV
                                         Uoc:20kV
    Remote Signal                 None                   Yes                 None               Yes

    The model is not fully recorded. Please contact us if you have special requirements

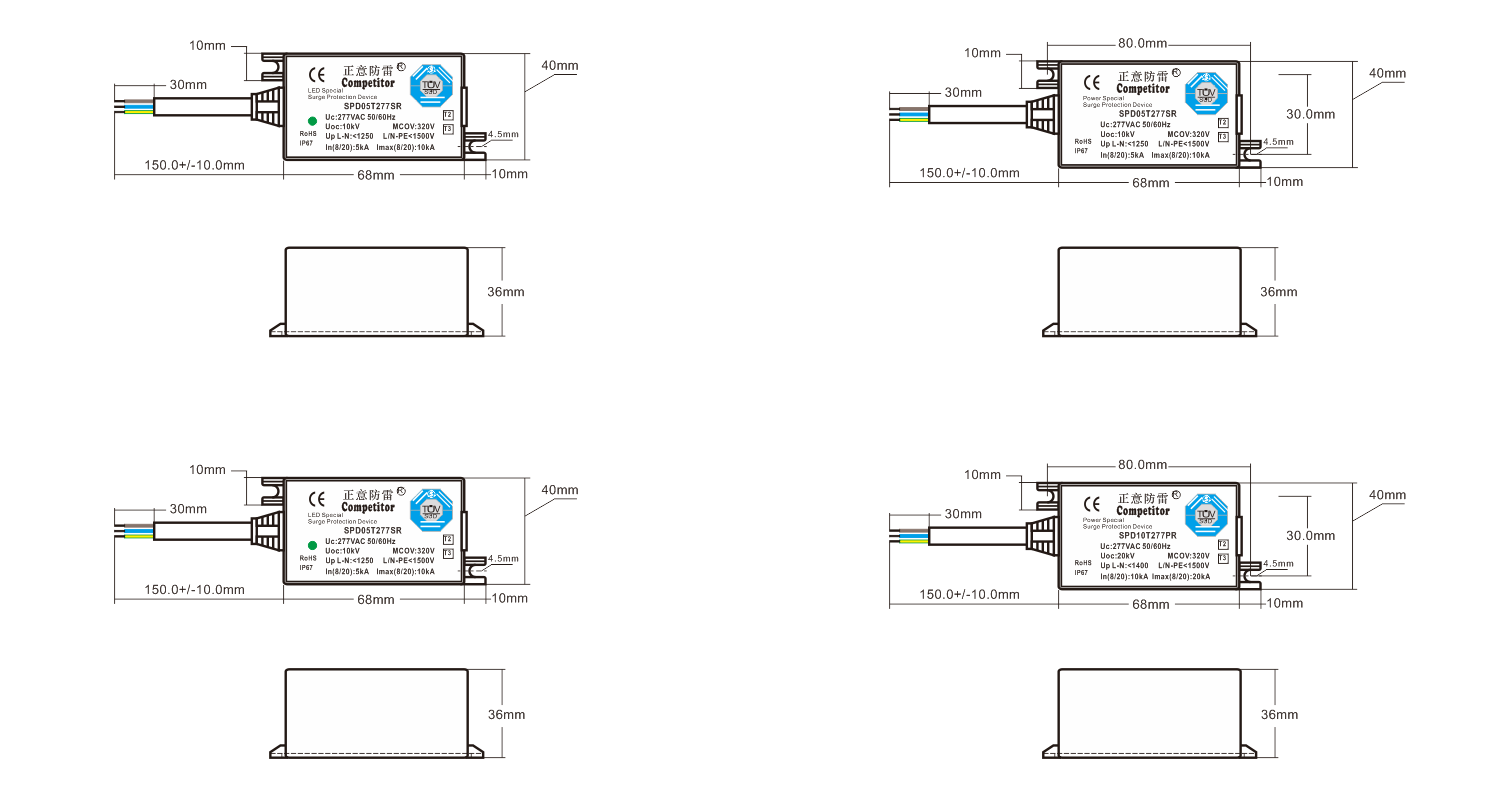

    Product Dimension Program:
